Description

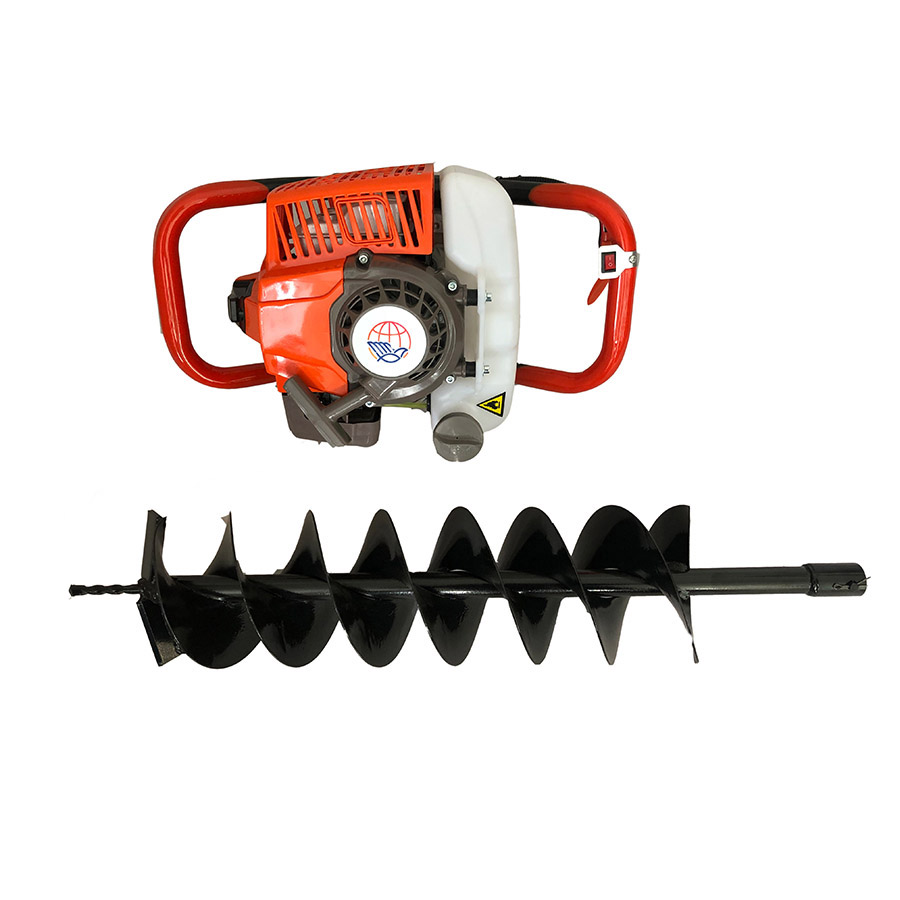

2 Stroke 52cc/63cc Gasoline Earth Auger
It is mainly used in greenhouses, orchards, mulberry gardens, tea gardens, nurseries and towns for small tree
transplantation,greening and digging and topdressing. It can also be used to bury piles on construction sites and pastures.
1.It adopts a two-stage shock absorption structure design. There is a rubber shock absorber between the gearbox body and the
handlebar bracket, and a rubber shock absorber column between the handlebar bracket and the handle, and the shock absorption
effect is obvious.
2.The drill bit above 200 in diameter is equipped with an anti-overload protection device to protect the safety of the machine and
the operator.
3.The contact part of the handle is covered with a plastic layer to prevent electric shock accidents caused by drilling into the
underground cable.
handlebar bracket, and a rubber shock absorber column between the handlebar bracket and the handle, and the shock absorption
effect is obvious.
2.The drill bit above 200 in diameter is equipped with an anti-overload protection device to protect the safety of the machine and
the operator.
3.The contact part of the handle is covered with a plastic layer to prevent electric shock accidents caused by drilling into the
underground cable.
Specification

Model Number
|
AG520
|
AG630
|
Type
|
2 stroke,single cylinder, air cooled
|
2 stroke,single cylinder, air cooled
|
Drill diameter(mm)
|

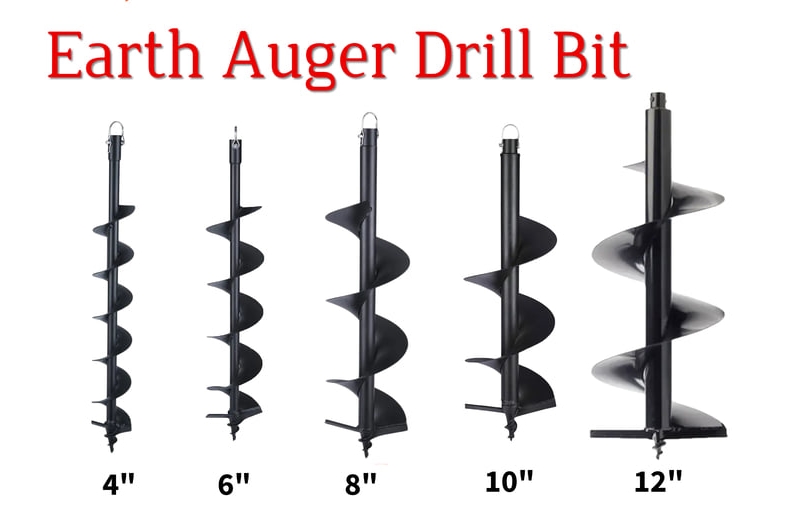

80/100/150
|
150/200/250/300
|
Engine
|
1E44F-E
|
1E48F
|
Displacement(cc)
|
51.7
|
63.3
|
Power output(kw/r/min)
|
1.3/7000
|
2.2/7500
|
Reduction Ratio
|
37:1
|
37:1
|
Net Weight(kg)
|
9.5
|
10.4
|
